In the world of construction and manufacturing, few components are as ubiquitous yet misunderstood as the C channel. Often hidden behind drywall or integrated into heavy machinery, the structural C channel—also known as a C-section steel or Parallel Flange Channel (PFC)—plays a critical role in supporting modern infrastructure.

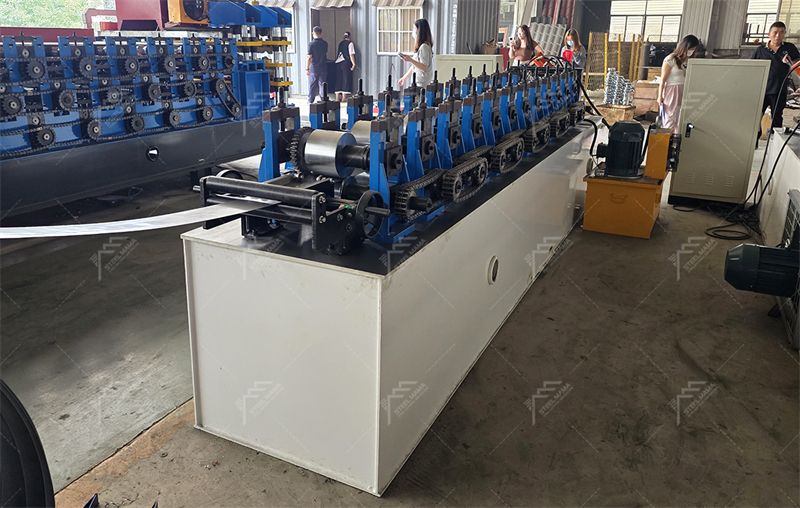

But how exactly does this simple, C-shaped piece of metal work? Whether you are an engineer specifying materials or a contractor sourcing roll-formed channels, understanding the mechanics of a C channel is essential for ensuring structural integrity and cost-efficiency.
To understand how it works, you must first understand its geometry. A standard C channel is defined by three main components:
The Web: The flat, vertical section that forms the main body of the channel.
The Flanges: The horizontal (or slightly sloped) top and bottom sections that extend perpendicularly from the web.
The Lip (Optional): In lipped C channels, a small inward bend at the edge of the flange. This small addition drastically increases the moment of inertia.
This specific shape is not arbitrary; it is a calculated design that maximizes strength while minimizing weight. The distribution of material away from the neutral axis (into the flanges) gives the C section its ability to resist bending.
The C channel works by managing the forces applied to it: Compression, Tension, and Shear.
Resisting Bending (Moment of Inertia):
When a load is applied to a beam, the top edge experiences compression (pushing together) while the bottom edge experiences tension (pulling apart). In a C channel, the flanges are positioned at the extreme edges of the shape. This placement is key: it maximizes the section modulus, meaning the material is placed exactly where it is needed most to resist bending stress. This is why a C channel can support significantly more weight than a flat piece of steel of the same thickness and weight.
Resisting Deflection:
The depth of the web determines how much the beam will deflect (sag) under load. A deeper channel provides greater vertical stiffness, making it ideal for applications like wall studs or roof purlins where keeping a straight line is crucial.
Handling Eccentric Loads:
One unique characteristic of a C channel is its "open" shape. Unlike a square tube or I-beam, the C shape has an open side. This means that if a load is applied off-center, it can create a torsional (twisting) force. Engineers account for this by either bracing the channel, using a lipped C channel (the lip resists twisting), or pairing channels back-to-back to form a box section.
Understanding the theory is good, but seeing how a C channel works in real-world scenarios makes it tangible.
As a Structural Stud in Wall Framing:
In light gauge steel framing, the C channel works as a vertical stud. The top and bottom tracks hold the studs in place. The web faces the load (e.g., wind pressure or roof weight), and the flanges provide the surface for attaching drywall. The hollow center of the C channel also provides a pathway for electrical and plumbing runs.
As a Purlin in Roofing Systems:
In metal buildings, C purlins are laid horizontally across the rafters. They work by spanning the gap between main frames, providing a nailing surface for the roof panels and transferring the weight of the roof (and snow/wind loads) down to the main structure. Zed channels are also used here, but C channels are favored for simple, single-span applications.
As a Track for Sliding Doors and Machinery:
Because of its rigid shape, the C channel is often used as a guide rail. The flat flanges create a perfect runway for wheels or rollers, while the web provides the structural mounting point to the floor or wall.
As Edge Protection (Framing):
In openings like doors or windows in steel buildings, C channels are used as headers and jambs. They work by reinforcing the opening, carrying the load from above around the void.
The performance of a C channel is not static; it depends on several variables:
Steel Grade (Yield Strength): Higher grade steel allows the channel to withstand higher stresses before permanent deformation.
Material Thickness (Gauge): In cold-formed steel, even a slight increase in thickness (e.g., from 1.5mm to 2.0mm) dramatically increases the load-bearing capacity.
Web Depth and Flange Width: Deeper webs resist vertical bending; wider flanges (or the presence of a lip) resist lateral-torsional buckling.
Hole Perforations: In slotted C channels (often used in strut systems), the holes reduce the overall weight but also slightly reduce the cross-sectional area. Engineers must account for this when calculating load capacity.
