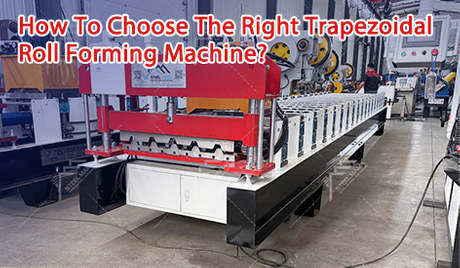

How To Choose The Right Trapezoidal Roll Forming Machine?

Selecting the right trapezoidal roll forming machine is a critical decision for any roofing or steel structure business. With so many models, configurations, and price points available, making the wrong choice can lead to low productivity, high maintenance costs, and poor profile quality. This guide will walk you through the key factors to consider so you can invest in a machine that delivers long-term value.

1. Understand Your Profile Requirements

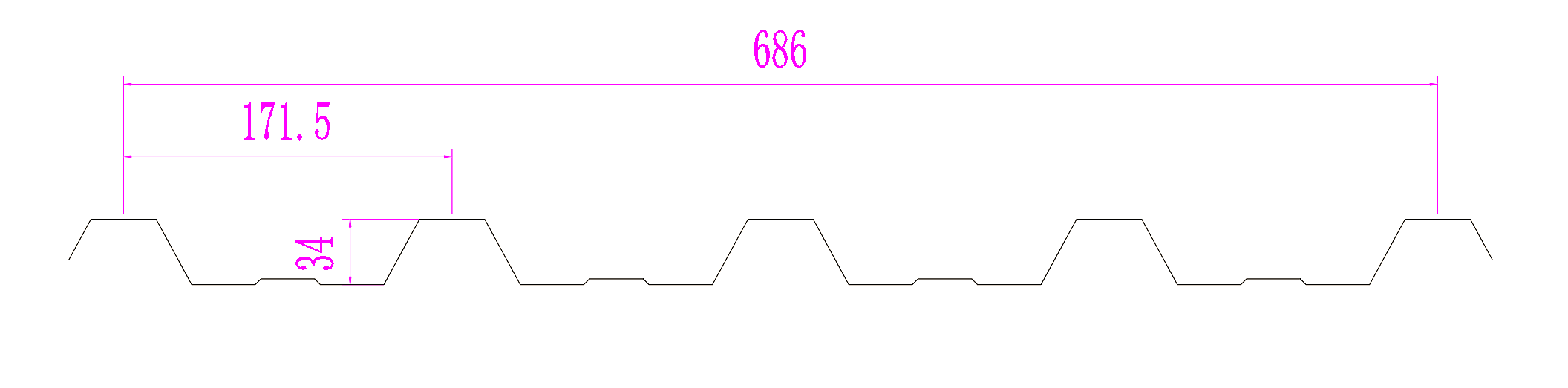

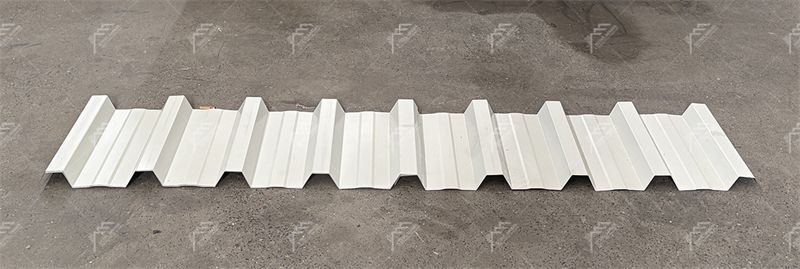

The first step in choosing a trapezoidal roll forming machine is knowing exactly which profile you need to produce. Trapezoidal sheets come in various heights, widths, and corrugation patterns.

Ask yourself:

• What is the rib height required for my roofing or cladding application?

• What effective width does the market demand in my region?

• Will I need to produce multiple trapezoidal profiles on the same machine?

Some manufacturers offer quick-change roll forming systems that allow you to switch between different trapezoidal sheet profiles without changing the entire roller set. This flexibility can be a major advantage.

2. Check Material Compatibility

Not all trapezoidal roll formers can handle the same materials. You need to confirm the machine's capacity in terms of:

• Material thickness: Typically 0.3mm to 1.5mm for roofing sheets, but industrial panels may require up to 2.5mm.

• Material type: Galvanized steel, prepainted steel (PPGI), aluminum, or even stainless steel.

• Coil width: The machine’s feeding width must match your raw material.

A robust trapezoidal cold roll forming machine will have heavy-duty rollers and a strong frame to prevent deflection when forming thicker or harder materials.

3. Evaluate the Roll Forming Process & Speed

The forming speed directly affects your production capacity. Basic trapezoidal roll forming machines may run at 8–12 meters per minute, while high-speed servo-driven models can reach 30–40 meters per minute.

Consider:

• How many meters of trapezoidal sheet do you need per day?

• Will the machine run continuously or intermittently?

• Does it have an automatic flying cutoff saw to cut profiles precisely without stopping?

Higher speed usually means higher cost, but if you have large orders, the investment pays off quickly.

4. Automation Level & Control System

Modern trapezoidal roll forming equipment comes with varying levels of automation. At a minimum, look for:

• PLC control (Programmable Logic Controller) for setting length and quantity.

• HMI touch screen for user-friendly operation.

• Automatic punching system if you need holes for fasteners.

Advanced machines also offer servo-driven feeding systems and remote diagnostic capabilities. The more automated your trapezoidal roof roll forming machine, the less manual labor and human error you will have.

5. Cutting System Quality

The cutting method is often overlooked but critically important. Two main types exist:

• Hydraulic cutting: Powerful, clean, suitable for thicker materials.

• Servo cutting: Faster, quieter, but more expensive.

A poor cutting system will leave burrs, deform the trapezoidal profile, or cause irregular lengths. Always ask for sample cuts before purchasing a trapezoidal panel roll forming machine.

6. Build Quality & Roller Material

Durability depends on the roll forming machine's construction. Key components to inspect:

• Frame: Heavy-duty welded steel structure minimizes vibration.

• Rollers: Should be made of Gcr15 bearing steel with hard chrome plating for wear resistance.

• Shafts: Larger diameter shafts (e.g., 75mm or 90mm) provide better rigidity.

Cheaper trapezoidal roll forming machines often use thin frames and soft rollers that wear out quickly, leading to inconsistent profile shapes.

7. Floor Space & Layout

Before buying, measure your workshop. A full trapezoidal roll forming line includes:

• Decoiler (manual or hydraulic)

• Feeding guide

• Main roll forming machine (typically 8–10 meters long)

• Hydraulic cutting station

• Runout table (6–12 meters)

Make sure you have enough space for raw material coils and finished trapezoidal sheets.

8. After-Sales Support & Spare Parts

A trapezoidal roll forming machine is a long-term asset. Poor after-sales support can leave your production line idle. Before committing, ask suppliers:

• Do you provide installation and training?

• How quickly can you ship spare rollers, cutting blades, or PLC modules?

• Is remote technical support available?

Reputable manufacturers offer at least 12 months warranty and lifetime technical assistance.

9. Price vs. Value

The cheapest trapezoidal roof roll former is rarely the best choice. Instead of focusing only on price, evaluate:

• Production speed

• Material thickness range

• Automation features

• Build quality

• Supplier reputation

A slightly more expensive trapezoidal sheet roll forming machine that runs reliably for 10 years is far better than a cheap machine that breaks down every month.

1: What is a trapezoidal roll forming machine used for?

Answer:
A trapezoidal roll forming machine is used to produce trapezoidal metal sheets, which are widely applied in roofing, wall cladding, ceiling panels, and industrial building facades. The machine continuously bends metal coils into a ribbed, wave-like profile with a trapezoidal shape, offering high structural strength and excellent water drainage.

2: What materials can be processed by a trapezoidal roll forming machine?

Answer:
A standard trapezoidal roll forming machine can process:

• Galvanized steel (GI)

• Prepainted steel (PPGI)

• Aluminum coils

• Stainless steel (for specific applications)

• Corrugated steel sheets

Material thickness typically ranges from 0.3 mm to 1.5 mm for roofing, while heavy-duty models handle up to 2.5 mm. Always check the machine’s material compatibility before purchasing.

3: What is the difference between a trapezoidal roll forming machine and a corrugated roll forming machine?

Answer:
Although both produce ribbed sheets, the key difference lies in the profile shape:

• A trapezoidal roll forming machine creates profiles with a flat top and flat bottom, shaped like a trapezoid. These sheets offer better load-bearing capacity and are commonly used for roofing and flooring.

• A corrugated roll forming machine produces sinusoidal (wavy) profiles, which are more flexible and often used for lightweight cladding or decorative walls.

For structural strength, the trapezoidal profile is generally preferred.

4: How fast does a trapezoidal roll forming machine run?

Answer:
Production speed depends on the machine’s design and automation level:

• Basic hydraulic machines: 8 – 12 meters per minute

• Standard automatic machines: 12 – 20 meters per minute

• High-speed servo-driven models: up to 35 – 40 meters per minute

Faster trapezoidal roll formers reduce labor costs and increase daily output, making them ideal for large-scale manufacturing.

5: Can one trapezoidal roll forming machine produce different profile sizes?

Answer:
Yes, but it depends on the machine design. Some trapezoidal roll forming machines come with fixed rollers for a single profile. However, advanced models feature:

• Quick-change roller systems

• Adjustable width mechanisms

• Interchangeable tooling

These allow operators to produce multiple trapezoidal sheet profiles (e.g., T35, T55, T60) on the same machine, increasing production flexibility.

Choosing the right trapezoidal roll forming machine requires careful evaluation of profile requirements, material compatibility, speed, automation, build quality, and after-sales support. By following this guide, you will avoid common mistakes and invest in a trapezoidal cold roll forming machine that boosts your productivity and profitability for years to come.
