Home » FAQ

FAQ

  • Q Roofing Tile Machine Catalogue

    A Please contact the sales people for catalogue on the right side of page
    Or send mail to arno@steelmama.com
    Or send whatsapp message to +86 17761555057

  • Q Roof Tile Machine Manual

    A PDF

  • Q Roofing Tile Profiles

    A roof tile drawing

  • Q Roofing Tile Machine Parts Option

    A
    Standard
    DECOILER    		 Option
    hydraulic decoiler
    Standard
    plate    		 Option
    pillar
    Standard
    chain    		 Option
    gear box
    Standard
    green pump    		 Option
    HYDRAULIC PUMP
    Standard
    PLC OUTSIDE    		 Option
    PLC
    Standard
    roofing machine support table    		 Option

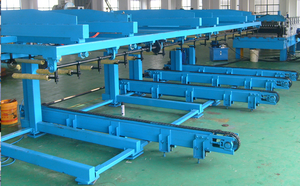

    stacker


  • Q Roofing Tile Machine Specification

    A
    Decoiler
    1.Max. Width: 1000mm
    2.Inner Diameter: Φ450 – Φ550 mm
    3.Outer Diameter: Φ1500 mm
    4.Max Loading Capacity: 5000kgs
    5.Inner diameter adjust : hand type    		 DECOILER
    Feeding
    1.Roller number: 4 pieces
    2.Guiding: Angle bar    		 feeding
    Roll Forming machine
    1.Material Thickness: 0.25-0.8mm PPGI and GI
    2.NO. of roller Stations:15 groups
    3.Material for Rollers: 45# steel polished and coated with chrome HRC58-62°
    4.Material for shaft: high grade 45# steel polished
    5.Diameter of shaft: 70mm
    6.Frame panel: 20mm plate
    7.Bottom frame:350x6mm H steel
    8.Motor Power:3KW
    9.Driven type: 1 inch Chain
    10.Speed: 8-10m/min    		 roof tile forming machine
    Pressing and Cutting Device Roof tile machine cutting and pressing
    Support roofing machine support table
    PLC PLC OUTSIDE
    Hydraulic Pump HYDRAULIC PUMP

  • Q Roofing Tile Machine Working Video

    A

  • Q Corrugated Roofing Sheet Machine Working Video

    A

  • Q Packing and Shipping

    A delivery
