Maximize Structural Precision with the 25x25-40x40mm Angle Bar Roll Forming Machine

When it comes to manufacturing high-quality steel angles for construction, shelving, or infrastructure, precision and speed are non-negotiable. The 25x25-40x40mm Angle Bar Roll Forming Machine is the industry standard for converting metal coils into straight, durable L-shaped profiles. Whether you need small 25x25mm angle bars for light frames or heavy-duty 40x40mm angle bars for industrial racking, this machine bridges the gap between versatility and structural integrity.

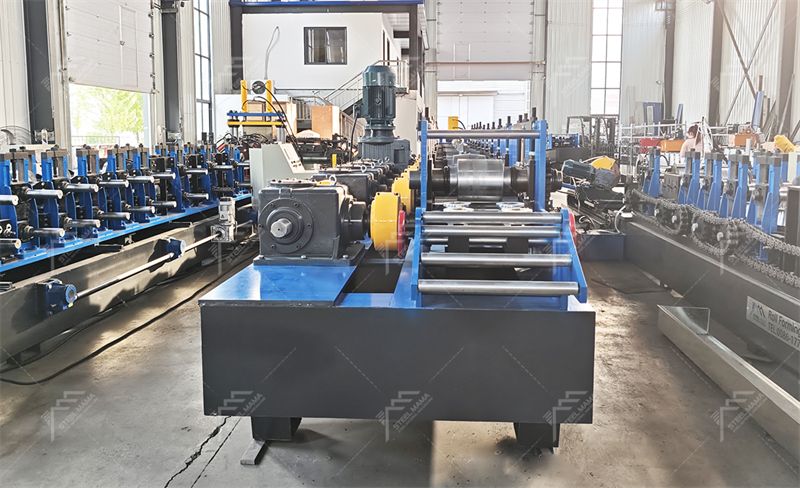

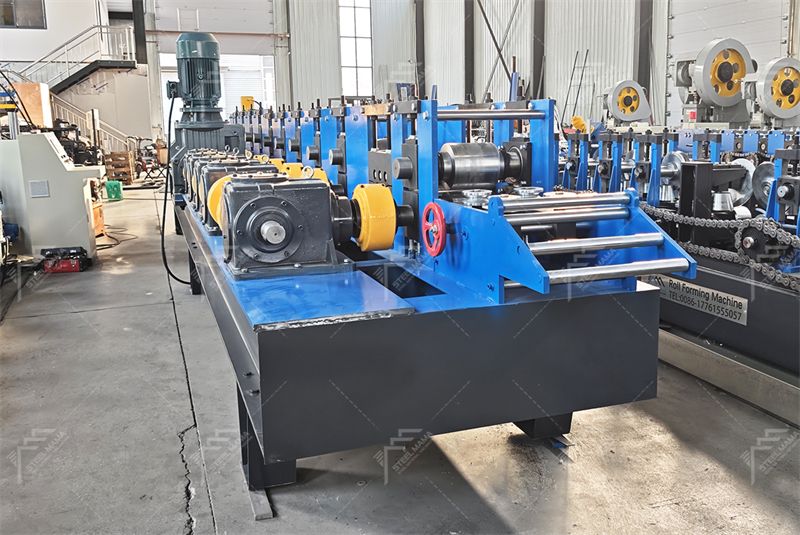

What is the 25x25-40x40mm Angle Bar Roll Forming Machine?

This specialized equipment is designed to produce equal and unequal angle bars ranging from 25mm x 25mm up to 40mm x 40mm. Unlike press braking, which is slow and inconsistent, the roll forming process ensures continuous, uniform bending. The 25x25-40x40mm Angle Bar Roll Forming Machine utilizes a series of progressive rollers to gradually shape the strip steel, eliminating stress lines and guaranteeing a perfect 90-degree corner every 30 meters.

Key Technical Specifications

For engineers and factory owners looking for specific data, here are the critical parameters of a standard angle bar roll forming line:

• Profile Size Range: 25x25mm to 40x40mm (customizable leg lengths available)

• Material Thickness: 1.5mm to 3.0mm (Galvanized steel, black iron, or stainless steel)

• Main Motor Power: 7.5kW to 11kW (Depending on gauge)

• Forming Stations: 12-16 stages for gradual material deformation

• Line Speed: 8–12 m/min (Standard operation)

• Coil Width: 80mm to 160mm (Calculated based on leg length)

Why Choose a Dedicated Angle Bar Forming Machine?

1. Elimination of Secondary Operations

Using a punching and cutting angle bar machine (often integrated inline), you can automatically punch holes or cut to length without stopping the production line. This turns the 25x25-40x40mm Angle Bar Roll Forming Machine into a just-in-time manufacturing cell.

2. Material Savings

Roll forming work-hardens the metal at the bend line. Specifically for the 40x40mm profile, the machine distributes stress evenly, allowing you to use thinner gauges without sacrificing torque resistance, saving up to 15% on raw material costs.

3. Consistency at High Volume

If your project requires 10,000 meters of 25x25mm angle bar, manual fabrication will result in variable tolerances. This roll forming machine maintains +/- 0.5mm accuracy throughout the entire run.

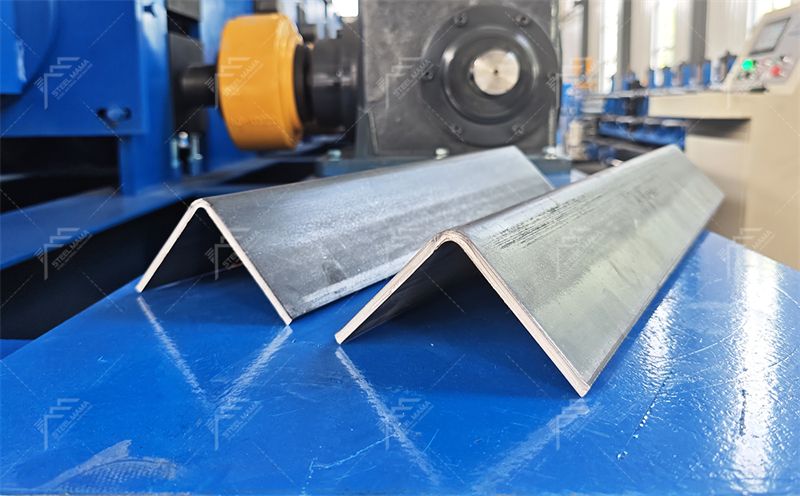

Applications of 25x25 to 40x40 Angles

The output from the 25x25-40x40mm Angle Bar Roll Forming Machine is used extensively in:

• Solar Panel Mounting Frames: The 40x40mm size is ideal for solar tracker structures.

• Warehouse Racking: Upright posts and diagonal bracing.

• Cable Trays & Ladder Racks: The 25x25mm corner bead protects cables.

• Furniture Frames: Office desks and modular shelving units.

• Agricultural Buildings: Greenhouses and livestock fencing posts.

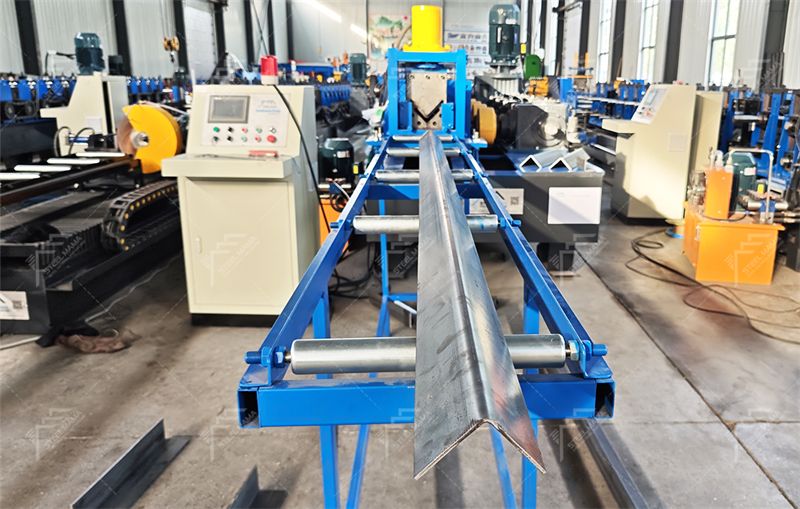

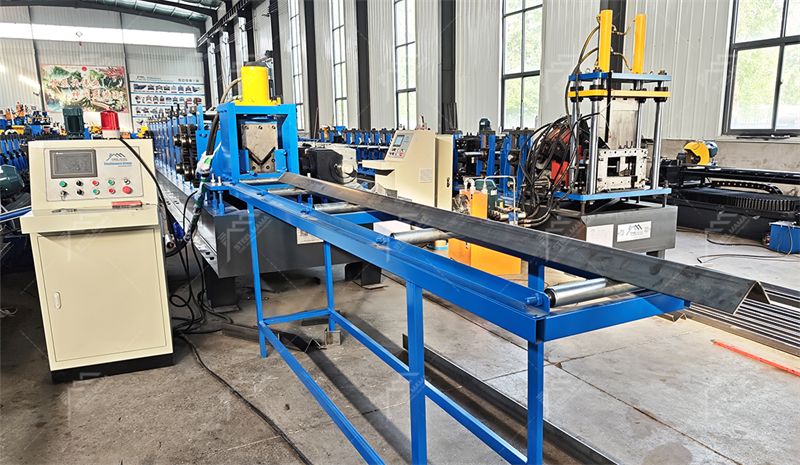

How to Optimize Your Line: Cut to Length vs. Post-Cutting

Most modern 25x25-40x40mm Angle Bar Roll Forming Machines offer a flying die cutoff. For SEO intent, note that angle bar cut to length searching is high-volume. A hydraulic shear synchronized with the flying speed ensures zero-end deformation, particularly important for the thinner 25x25mm profiles.

Selecting the Right Supplier for Your Roll Forming Line

When investing in an angle bar production line, consider these three factors:

1. Material Hardness: Can the machine handle Q235, Q355, or SS304? For 40x40mm in stainless, you need extra roller hardness (HRC 58-62).

2. Changeover Time: How fast can you switch from 25x25mm to 40x40mm? Look for machines with online adjustable spacer rings.

3. After-Sales Support: Ensure the supplier provides the roll forming design drawings for the specific angle bar cross-section you need.

Maintenance Tips for Longevity

To keep your 25x25-40x40mm Angle Bar Roll Forming Machine running for a decade:

• Daily: Clean scale and dust from the 16 forming stations.

• Weekly: Check gearbox oil levels in the main transmission.

• Monthly: Inspect the cut-to-length encoder for vibration loosening.

Conclusion

The 25x25-40x40mm Angle Bar Roll Forming Machine is a powerhouse for any metal fabrication shop. By automating the production of these critical structural elements, you reduce labor costs by 70% and eliminate material waste. Whether you need lightweight 25x25mm supports or heavy 40x40mm frames, this machine delivers speed, accuracy, and ROI.

Ready to upgrade your angle bar production? Contact us for a custom quote on this versatile roll forming line today.
