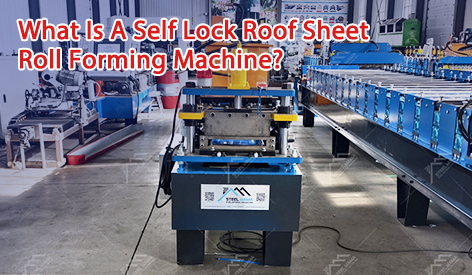

A Self Lock Roof Sheet Roll Forming Machine is a specialized piece of industrial equipment designed to convert metal coils—such as galvanized steel, color-coated steel, or aluminum—into profiled roofing sheets with an integrated interlocking mechanism . Unlike traditional overlapping sheets that require exposed fasteners, these machines produce panels with standing seam or snap-lock profiles that click together securely .
This method, often referred to as a concealed roof panel system, eliminates the need for exposed screws on the panel surface, significantly reducing the risk of leaks and enhancing the building"s aesthetic appeal .
Investing in a Self Lock Roof Sheet Roll Forming Machine provides manufacturers and contractors with a distinct competitive edge:
The most significant advantage of self-lock panels is their exceptional ability to prevent water penetration. Because the panels lock together without through-fixings, there are no holes in the sheet surface where water can seep in. This design ensures excellent water discharge capacity and storm resistance, making it ideal for low-pitched roofs .
With no exposed screws or bolts, the roof presents a clean, sleek, and uninterrupted line. This minimalist look is highly sought after in contemporary commercial and residential architecture .
The clip-lock or snap-lock design allows for faster installation compared to traditional screw-down methods. Panels are simply clipped together, reducing labor costs and on-site installation time .
These machines produce panels with high ribs and strong corrugations. The interlocking process creates a continuous membrane that can withstand high uplift pressures, making it suitable for areas prone to high winds .
To produce high-quality self-locking panels, the Self Lock Roof Sheet Roll Forming Machine incorporates advanced technology and robust construction. Here are the core features you should look for:
Modern machines are equipped with a Programmable Logic Controller (PLC) coupled with a touchscreen interface . This allows operators to easily adjust panel dimensions, profile depths, and production speeds. A high-quality PLC system ensures ±0.1mm precision in corrugation, which drastically reduces material waste .
A versatile metal roofing roll forming machine should be able to process a variety of materials. Standard compatible materials include:
Galvanized Steel (GI)
Color-coated Steel (PPGI/PPGL)
Aluminum Coils
The typical working thickness ranges from 0.3mm to 0.8mm for standard profiles, with some heavy-duty models capable of handling up to 1.2mm for industrial applications .
Precision cutting is vital for consistency. Most industrial self-lock standing seam roll forming machines utilize a hydraulic cutting system equipped with blades made from high-grade materials like Cr12 steel, ensuring burr-free and clean cuts .
A typical self lock roof sheet metal machine production line consists of:
Uncoiler: To hold and feed the metal coil.
Guide Device: To straighten the material.
Roll Forming Station: Where the metal is gradually bent into the desired profile.
Hydraulic Shear: For cutting the panel to length.
Finished Product Rack: For stacking the finished panels .
The panels produced by a Self Lock Roof Sheet Roll Forming Machine are incredibly versatile. They are widely used in:
Industrial Buildings: Factories and warehouses benefit from the long-span capabilities and durability .
Commercial Complexes: Shopping malls and exhibition centers utilize these panels for their modern look.
Agricultural Sheds: Ensuring livestock and equipment are protected from the elements.
Residential Roofing: High-end homes are increasingly adopting standing seam metal roofing for its longevity and style .
Wall Cladding: Beyond roofing, these panels are also popular for vertical applications and wall cladding systems .
