If you are in the roofing manufacturing industry or planning to start a metal roof production line, you may have come across the term ridge cap roof sheet making machine. But what exactly is this equipment, and why is it essential for modern roofing projects? In this guide, we will explore the definition, working principle, and final products of this specialized roll forming machine.

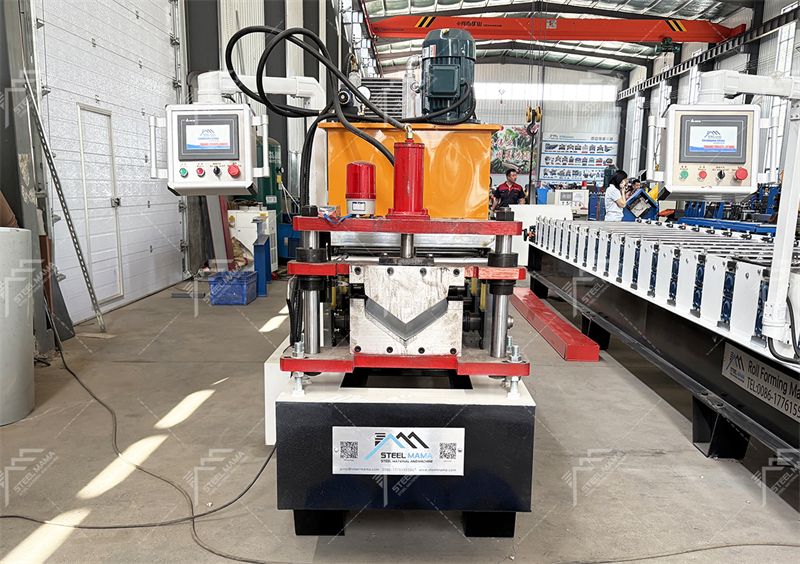

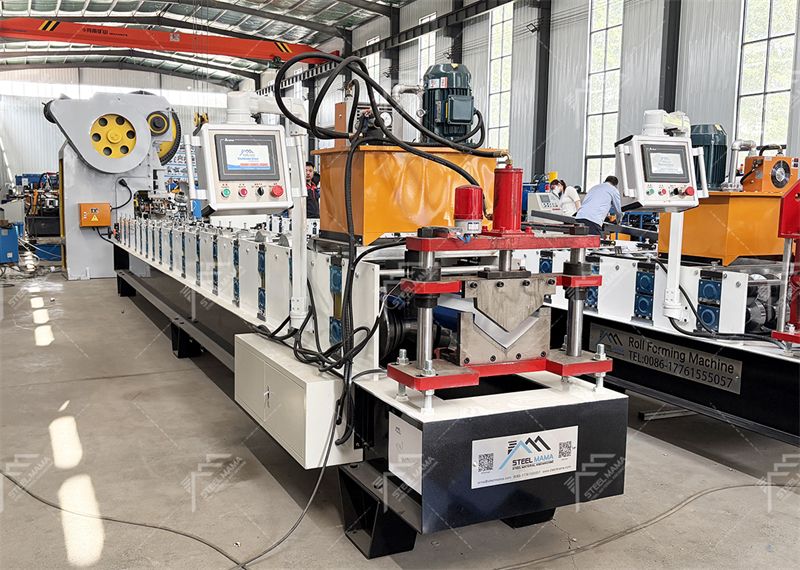

A ridge cap roof sheet making machine is a high-precision roll forming machine designed to produce ridge cap sheets, also known as roof ridge caps or peak caps. These components are installed at the highest horizontal intersection of a sloped roof—where two roof slopes meet. The machine continuously bends and shapes metal coils (such as galvanized steel, aluminum, or prepainted sheets) into curved or angled profiles that cover the roof ridge.
Decoiler: Holds and feeds the metal coil.

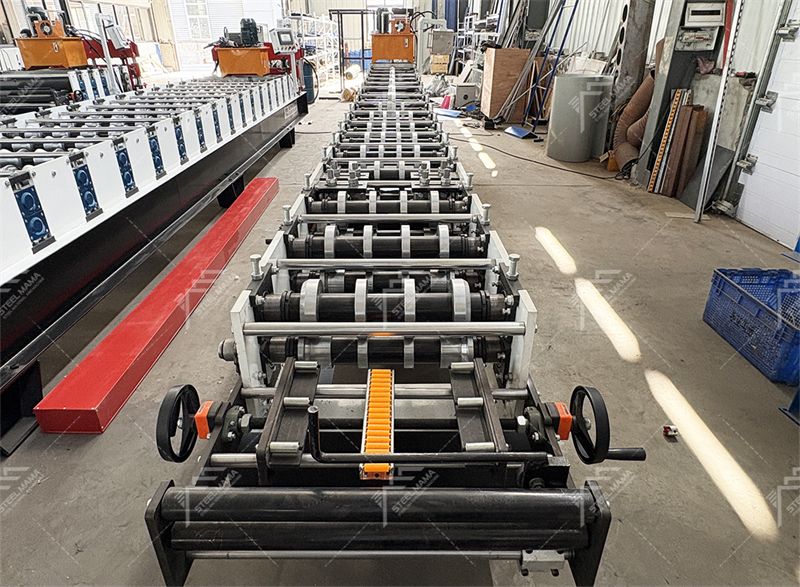

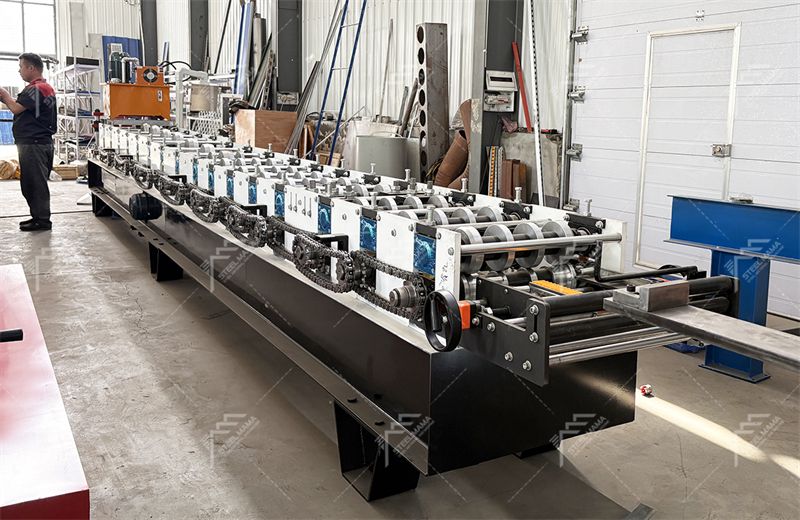

Roll Forming Station: A series of rollers gradually shape the metal.
Hydraulic Punching & Cutting System: Creates holes and cuts profiles to length.
PLC Control System: Allows precise adjustment of length, shape, and production speed.
The machine produces a variety of roof ridge accessories. Below are the most common products:

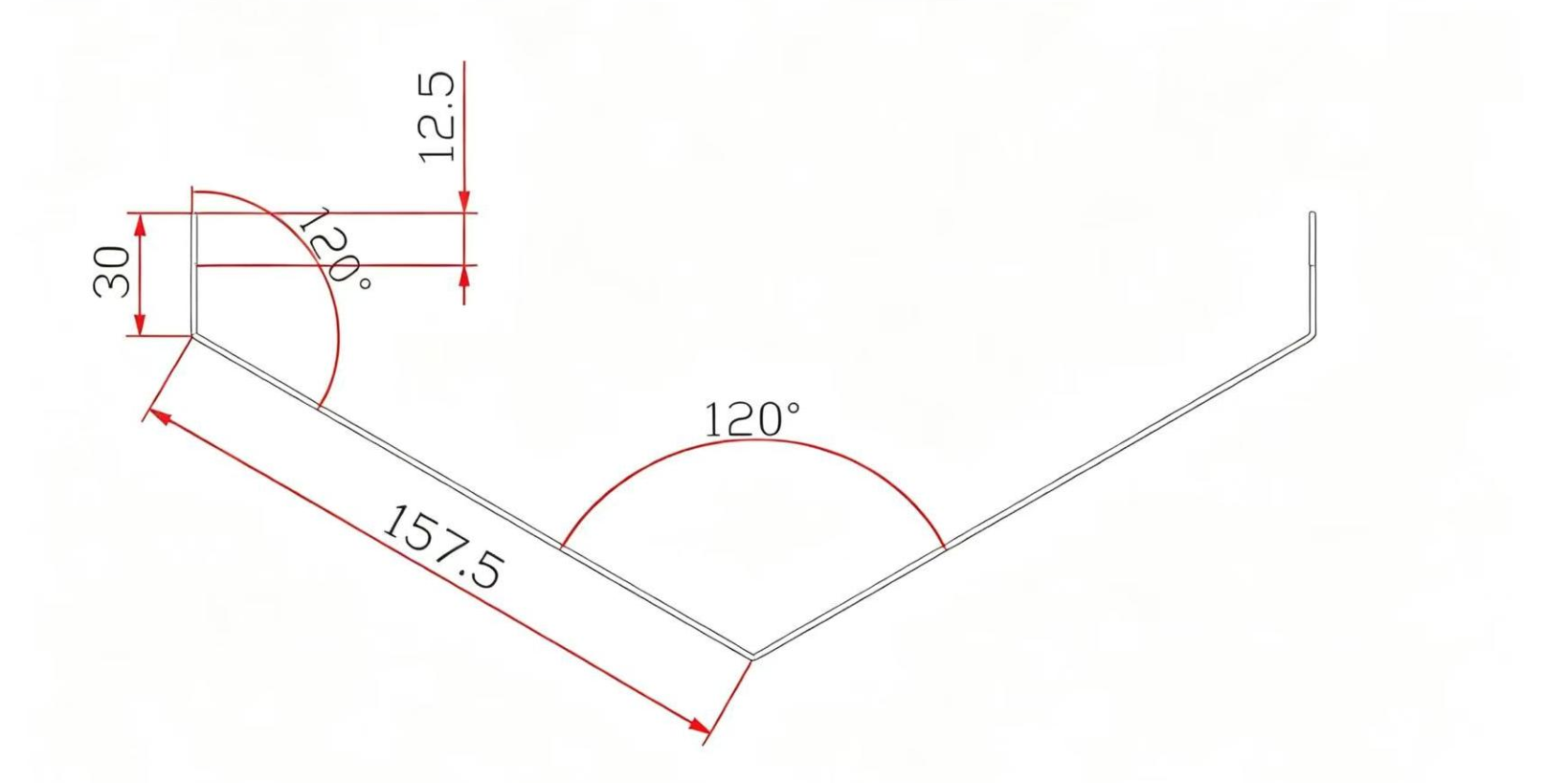

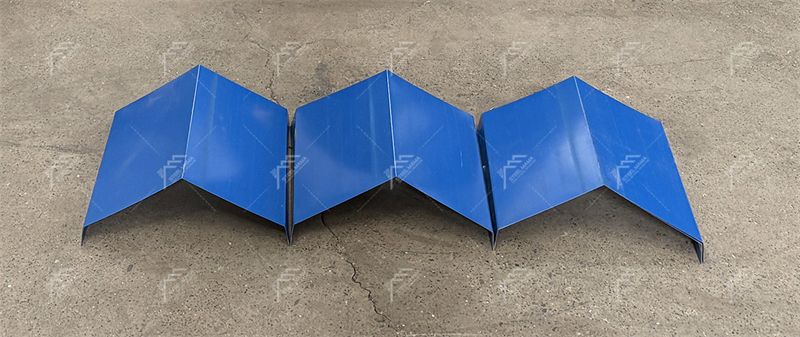

These are angled sheets (typically 90° to 120°) used on residential and commercial roofs. They cover the gap between two roof slopes and prevent water leakage.
Designed for trapezoidal metal roof panels, these caps match the ribbed profile of the roof sheets, ensuring a tight, weatherproof seal.
Often used in European-style or architectural metal roofs, these provide an aesthetic rounded finish while maintaining water diversion functionality.
Some advanced machines produce vented ridge caps with built-in mesh or louvers to allow attic ventilation while keeping out rain and pests.
With adjustable roll forming stations, the machine can also produce end caps, hip caps, and transition pieces for complex roof designs.
Parameter | Typical Value |
|---|---|
Material thickness | 0.3–1.0 mm |
Material width | 150–500 mm |
Profile height | 20–80 mm |
Main power | 5.5–15 kW |
Production speed | 10–20 m/min |
Coil weight capacity | 3–8 tons |
The finished ridge cap sheets are usually cut to customer lengths (e.g., 2m, 2.5m, or 3m) and stacked for easy transport.
Using a ridge cap roof sheet making machine offers several business advantages:
On-demand production – No need to buy pre-made caps from suppliers.
Cost savings – Reduce material waste and logistics costs.
Profile variety – Switch between V-shaped, trapezoidal, or arc caps in minutes.
Durability – Machine-made caps are uniform, strong, and weather-resistant.
From an SEO perspective, targeting keywords like ridge cap roll forming machine, metal roof ridge cap maker, and automatic ridge cap production line helps attract contractors, wholesalers, and roof manufacturers searching for efficient solutions.
A ridge cap roof sheet making machine is an indispensable asset for any metal roofing factory. It produces essential ridge protection components that keep buildings dry, ventilated, and visually finished. Whether you need simple V-caps or custom ventilated profiles, this machine delivers speed, accuracy, and versatility.
Looking for a reliable ridge cap roof sheet making machine? Contact us today to get a catalog, price list, or free production consultation.
