If you are in the metal fabrication business, you already know that strut channels are the backbone of electrical, mechanical, and industrial support systems. To produce these channels efficiently and profitably, you need a reliable Unistrut channel roll forming machine. This comprehensive guide explains everything you need to know about this essential equipment, from its working principle to how to choose the best Unistrut channel roll forming machine for your factory.

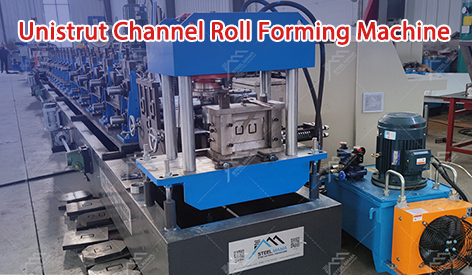

A Unistrut channel roll forming machine is a specialized piece of industrial equipment designed to continuously bend and shape metal coils into U-shaped or C-shaped strut channels. These channels—often called Unistrut, strut, or channel—are used in cable trays, pipe supports, HVAC brackets, seismic bracing, and solar mounting structures.

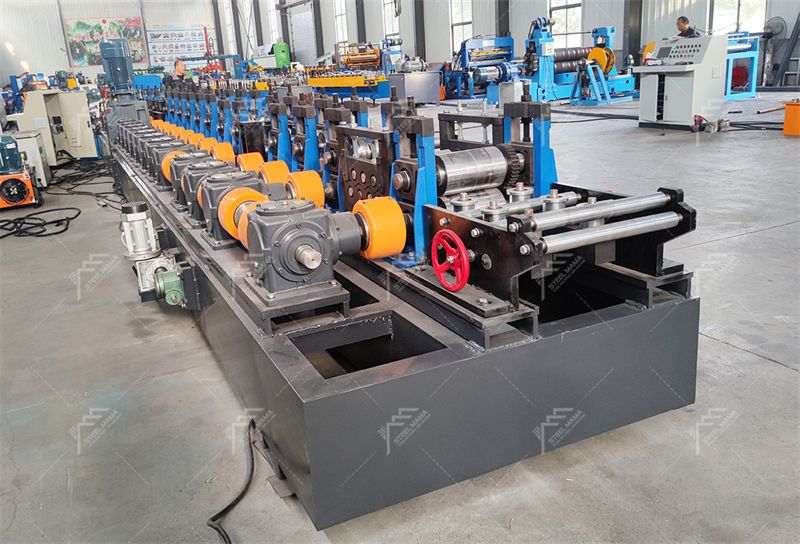

The Unistrut channel roll forming machine operates by feeding a flat metal strip through a series of roller stations. Each station gradually forms the profile until the desired cross-section is achieved. At the end of the line, a cutting unit (usually a flying saw or hydraulic shear) cuts the channel to the required length.

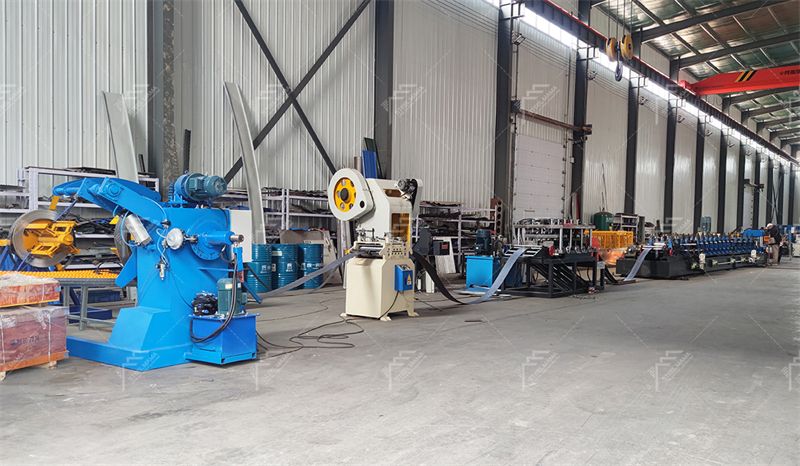

A high-quality strut channel roll forming machine consists of several critical components:
Decoiler – Holds and unwinds the metal coil (manual or hydraulic)
Feeding and guiding system – Ensures precise alignment before forming
Roll forming stations – Typically 12 to 24 stations, depending on profile complexity

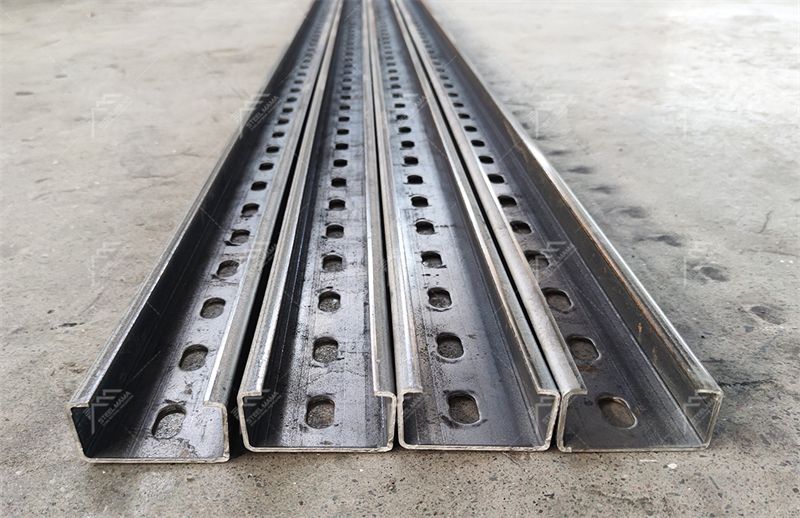

Punching unit – Creates holes, slots, or notches for bolts and fittings
Cutting unit – Flying saw, hydraulic shear, or servo-driven cutter
PLC control system – Touch screen interface for easy operation
Stacker or run-out table – Collects finished channels efficiently
Every part of the solar strut channel roll forming machine is engineered for durability and precision. High-grade rollers made from Cr12MoV or SKD11 steel, combined with heat treatment, ensure a long service life and consistent output.
There are many reasons why manufacturers choose to purchase a Unistrut channel roll forming machine rather than outsourcing or using press brakes.
A modern Unistrut channel roll forming machine can run at speeds of 20 to 50 meters per minute. This dramatically increases output compared to manual or semi-automatic methods.
The Unistrut channel roll forming machine produces channels with tight tolerances—usually within ±0.5mm. This consistency is critical for load-bearing applications where safety matters.
With automated feeding, forming, punching, and cutting, a Unistrut channel roll forming machine requires only one or two operators. This reduces labor costs and minimizes human error.
Roll forming is a continuous process that minimizes scrap. A well-designed Unistrut channel roll forming machine can achieve material utilization rates above 95%.
Many Unistrut channel roll forming machines are adjustable, allowing you to produce different channel sizes (e.g., 41x41mm, 41x21mm, 41x82mm) with minimal changeover time.
Channels produced by a Unistrut channel roll forming machine are used in a wide range of industries:
Electrical construction – Cable trays, conduit supports, panel mounting
Mechanical engineering – Pipe hangers, equipment frames, machine guards
HVAC – Duct supports, vibration isolation bases
Solar energy – Mounting rails and structural supports
Seismic bracing – Earthquake-resistant support systems
Data centers – Server rack supports and cable management
If you serve any of these markets, a Unistrut channel roll forming machine is a smart investment that pays for itself quickly.
Not all roll forming machines are created equal. When shopping for a Unistrut channel roll forming machine, consider these factors:
Determine the exact channel dimensions you need. Common Unistrut profiles include 41x41, 41x21, 41x82, and 41x62. Your Unistrut channel roll forming machine must be designed for these profiles.
Unistrut channels are typically made from 1.5mm to 3.0mm thick steel. Ensure your Unistrut channel roll forming machine can handle the thickness range you require.
If you need high-volume output, choose a Unistrut channel roll forming machine with a speed of at least 30 m/min. For lower volumes, a slower machine may be more cost-effective.
Options include automatic decoilers, servo-driven feeders, hydraulic punching, and auto stackers. A fully automatic Unistrut channel roll forming machine reduces labor and improves consistency.
Choose a reputable manufacturer with proven experience in Unistrut channel roll forming machines. Ask for videos, testimonials, and spare parts availability. Good after-sales support is essential for long-term success.
To keep your unistrut channel roll forming machine running smoothly, follow these maintenance practices:
Lubricate rollers and bearings regularly
Check and replace worn cutting blades
Inspect hydraulic and pneumatic systems for leaks
Calibrate the PLC and sensors periodically
Keep the machine clean and free of metal debris
A well-maintained Unistrut channel roll forming machine can last 10 to 15 years or more.
Q1: What is the price of a Unistrut channel roll forming machine?
A: Prices vary based on automation, speed, and profile complexity. A basic Unistrut channel roll forming machine may cost $25,000–$50,000, while a fully automatic line can exceed $100,000.
Q2: How long does it take to manufacture a Unistrut channel roll forming machine?
A: Typically 30–60 days, depending on customization and order volume.
Q3: Can a Unistrut channel roll forming machine produce different sizes?
A: Yes, many machines are adjustable or can be equipped with interchangeable rollers for different profiles.
Q4: What materials can a Unistrut channel roll forming machine process?
A: Mild steel, galvanized steel, stainless steel, and aluminum are common materials.
Q5: Do you provide installation and training for the Unistrut channel roll forming machine?
A: Reputable suppliers offer overseas installation, operator training, and technical support.
A Unistrut channel roll forming machine is a valuable asset for any metal fabrication business serving the electrical, mechanical, or solar industries. It delivers high speed, precision, and flexibility—helping you reduce costs and win more contracts. Whether you are starting a new production line or upgrading existing equipment, investing in a quality Unistrut channel roll forming machine is a decision that will pay off for years to come.
