Views: 85 Author: steelmama Publish Time: 2026-04-01 Origin: Omega Furring Channel Roll Forming Machine

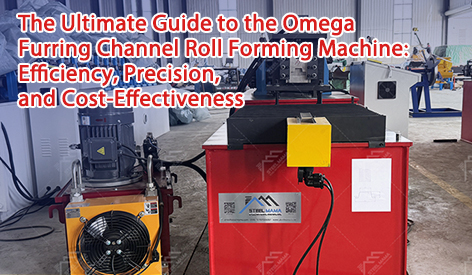

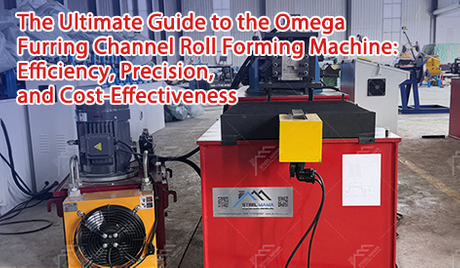

In the modern construction and metal framing industry, precision and efficiency are paramount. Whether you are a contractor, a manufacturer, or a supplier, the demand for high-quality metal framing components is constantly rising. At the heart of this production lies a critical piece of equipment: the Omega Furring Channel Roll Forming Machine. This machine is specifically engineered to produce omega furring channels, also known as hat channels, which are essential for curtain wall systems, drywall framing, and exterior insulation finishing systems .
Before diving into the machinery, it is essential to understand the product. An omega furring channel is a metal profile shaped like the Greek letter Omega (Ω). It is primarily used to level uneven substrates, provide a sturdy base for gypsum boards, and create a ventilation gap between the cladding and the exterior wall. Because these profiles require consistent shape integrity to ensure structural safety, investing in a high-quality roll forming machine is non-negotiable.
When sourcing a roll former, manufacturers look for durability, speed, and flexibility. Our omega furring channel roll forming machine is designed to meet the rigorous demands of modern construction sites and manufacturing plants.
Time is money in the steel framing industry. This machine operates at a maximum speed of 15-20 meters per minute, ensuring that you can fulfill large-volume orders without bottlenecks. The high-speed capability allows for continuous production runs of omega furring channels with minimal downtime.
The machine utilizes advanced PLC control systems and automatic hydraulic cutting mechanisms. This ensures that every omega furring channel is cut to an exact length with a tolerance of less than ±1.0mm. The precision of the roll forming machine guarantees that the profiles are free from twisting and bowing, which is critical for seamless installation on-site.
Built on a heavy-duty steel frame, this omega furring channel roll forming machine is designed to withstand the vibration and stress of continuous operation. The high-quality rollers are made from GCr15 bearing steel, heat-treated for hardness, ensuring a long lifespan even when processing high-strength galvanized steel or cold-rolled steel.
One of the biggest advantages of this specific roll forming machine is its flexibility. By adjusting the tooling and entry guides, the machine can produce various sizes of omega furring channels, ranging from 0.4mm to 1.2mm in thickness. This versatility allows manufacturers to diversify their product offerings without investing in multiple machines.
For businesses looking to expand their market share, ranking for specific keywords is crucial. By incorporating a dedicated omega furring channel roll forming machine into your production line, you are not just buying a machine; you are investing in a solution that allows you to dominate the metal stud framing market.
Cost Reduction: Automated hydraulic decoilers and stacking tables reduce labor costs. One operator can manage the entire production line of omega furring channels.
Material Savings: The PLC controller minimizes waste by optimizing the cutting sequence, saving you up to 5% on raw material costs annually.
Durability: Built for 24/7 operation, this roll forming equipment ensures a rapid return on investment (ROI).
The profiles produced by this roll forming machine are used extensively in:
Curtain Wall Systems: Providing horizontal support for vertical mullions.
EIFS (Exterior Insulation and Finish Systems): Creating a drainage plane behind the exterior cladding.
Acoustic Ceilings: Supporting soundproofing materials in commercial buildings.
Drywall Framing: Serving as a furring member over masonry or concrete walls.
To help you understand the capabilities of this omega furring channel roll forming machine, here are the standard parameters:
Specification | Detail |
|---|---|
Material Thickness | 0.4mm – 1.2mm (Galvanized Steel) |
Forming Speed | 12-15 m/min (including cutting) |
Main Motor Power | 7.5 KW – 11 KW |
Roller Stations | 14-18 stations (customizable) |
Cutting Type | Hydraulic (Post-cutting for precision) |
Control System | PLC with Touch Screen |
Voltage | 380V / 220V / Customizable |
Investing in a reliable Omega Furring Channel Roll Forming Machine is a strategic move for any business involved in metal framing. It combines high-speed output with the precision required for modern architectural standards. Whether you are looking to upgrade your existing production line or start a new venture in steel framing, this roll forming machine offers the durability, efficiency, and versatility needed to stay competitive.
Ready to streamline your production? Contact us today to request a quote, view a video of the roll forming machine in action, or discuss custom tooling options for your specific omega furring channel profiles.
