In the modern construction and roofing industry, the corrugated sheet roll forming machine has become an indispensable asset. Whether you are a contractor, a manufacturer, or a distributor, understanding how a roll forming machine operates is critical to maximizing efficiency and output. This guide dives deep into the mechanics, components, and workflow of the corrugated sheet roll forming machine, explaining why it is the backbone of metal roofing production worldwide.

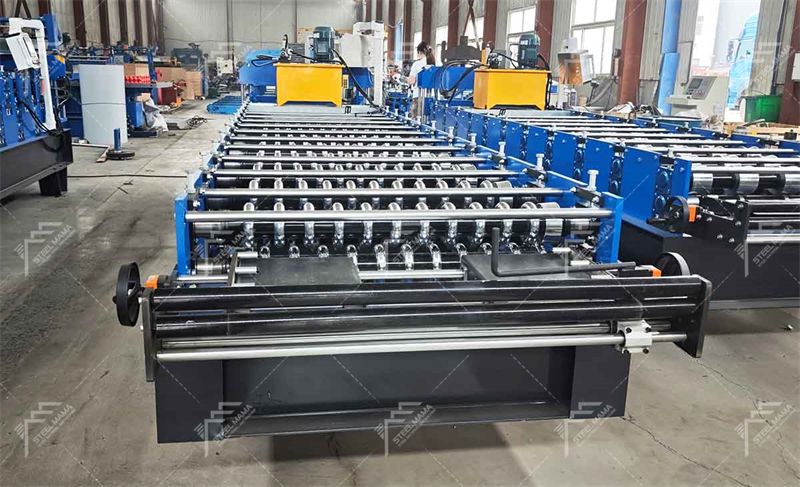

A corrugated sheet roll forming machine is a specialized piece of industrial equipment designed to convert flat metal coils—typically made of steel, aluminum, or galvanized iron—into corrugated panels with consistent, precise profiles. Unlike press braking or stamping, the roll forming process uses a continuous bending operation, making it ideal for high-volume, long-length production runs.
To understand how the Corrugated sheet forming machine works, you must first know its key parts:
Decoiler (Uncoiler) – Holds and rotates the metal coil, feeding material into the line.
Feeding Guide & Leveler – Straightens the strip and ensures precise entry into the forming stations.
Roll Forming Stations (Roller Dies) – A series of paired rotating rollers, each set gradually bending the metal.
Drive System (Gearbox & Motor) – Powers the rollers with synchronized torque and speed.
Hydraulic Cutting Device – Shears the formed sheet to the required length without stopping the line.
PLC Control Panel – The brain of the Corrugated roof roll forming machine, controlling speed, length, and count.
The operation begins with loading a heavy steel coil onto the decoiler. The operator threads the leading edge of the strip through the entry guide. The uncoiler rotates at a controlled speed, ensuring a steady, tension-free supply of metal to the roll forming machine.
This is the heart of the process. As the flat strip moves through the roll forming stations, each pair of rollers performs a small, incremental bend. Typically, a corrugated sheet roll forming machine has between 12 and 24 stations. The upper and lower rollers are precisely machined to match the desired corrugation pitch and depth.
With each pass, the metal is plastically deformed—permanently shaped without losing structural integrity. By the final station, the flat strip has transformed into a fully corrugated profile, ready for cutting.
Once the corrugated sheet exits the final forming station, it moves to the hydraulic cutting device. Unlike static shears, modern roll forming machines use a flying cut-off system. This means the shear moves synchronously with the sheet speed, allowing cutting to occur without pausing production. The PLC determines the cutting length—commonly 2m, 3m, or 6m—and activates the shear at the exact moment.
After cutting, the finished corrugated panels are automatically conveyed to a stacking table. Some advanced models include an automatic counting and packaging system, minimizing manual labor and boosting overall productivity.
The PLC control panel is what sets a high-end steel metal Corrugated roofing machine apart from outdated equipment. Operators input parameters such as:
Desired sheet length
Number of panels per batch
Production speed (meters per minute)
The PLC then adjusts the drive system and cutting servo in real time. This automation ensures that every sheet has identical corrugation depth, width, and length—critical for roofing applications where panels must interlock seamlessly.
Roller Material – High-grade GCr15 bearing steel with chrome plating ensures wear resistance.
Forming Speed – Typically ranges from 10 to 25 meters per minute, depending on gauge thickness.
Material Thickness – Most machines handle 0.3mm to 1.2mm mild steel.
Servo vs. Hydraulic Drive – Servo-driven roll forming machines offer better energy efficiency and positional accuracy.
High Efficiency – Continuous operation with flying cutoff eliminates idle time.
Material Savings – Minimal scrap due to precise roll forming and cutting.
Labor Reduction – One operator can manage the entire line via the PLC.
Versatility – Quick-change roller cassettes allow switching between different corrugation profiles.
Durability – Built for 24/7 industrial use with minimal maintenance.
Panels produced by a Corrugated steel making machine are widely used for:
Residential and commercial roofing
Warehouse wall cladding
Agricultural building siding
Ceiling decks and flooring forms
Portable container panels
To keep your roll forming machine running smoothly:
Lubricate all bearings and gearboxes weekly.
Check roller alignment every month using a dial gauge.
Clean the hydraulic oil filter regularly to prevent shear malfunctions.
Update PLC software as recommended by the manufacturer.
Inspect the decoiler brake to avoid coil slippage.
As a leading manufacturer, we offer corrugated sheet roll forming machines with:
Heavy-duty welded frames for vibration-free forming
Imported servo motors and PLC (Siemens or Delta)
Quick-change roller systems (under 15 minutes)
2-year warranty on all mechanical parts
Free on-site installation and training
Our machines are CE and ISO certified, ensuring safety and reliability for global markets.
Q: Can the Steelmama corrugated sheet roll forming machine produce different profiles?
A: Yes, with interchangeable roller sets, but each profile requires its own dedicated roller station set.
Q: What is the maximum speed of a standard Steelmama roll forming machine?
A: Most models run at 12–18 m/min; high-speed versions can reach 30 m/min for thin gauges.
Q: How much floor space is required?
A: Typically 12–18 meters in length, including decoiler, main machine, and stacker.
Q: What is the best Corrugated Sheet Machine for most ?
For most buyers, the best option is a PLC-controlled single-profile corrugated roofing line or a double-layer line if multiple profiles are needed. The right choice depends on your production volume, available floor space, and whether you also want to produce trapezoidal sheets.
Q: What material thickness should a corrugated roofing line handle?
A common working range is 0.3-0.8 mm for PPGI and GI coils. Many standard roofing orders fall within 0.3-0.6 mm, but buyers serving heavier-duty industrial applications may prefer a machine designed for thicker material.
Conclusion
Understanding how a corrugated sheet roll forming machine works empowers you to make informed purchasing decisions, optimize production schedules, and reduce operational costs. From the decoiler to the PLC-controlled flying shear, every component plays a vital role in delivering high-quality, uniform corrugated panels at impressive speeds.
If you are looking to upgrade your roofing production line or start a new metal fabrication business, investing in a premium corrugated sheet roll forming machine is the smartest move you can make. Contact us today for a customized quote, technical drawing!
